SOUND ABSORPTION ON A DIFFERENT SPECTRUM

REAL WOOD  -  ANY SPECIES  -  ALL-IN-ONE ACOUSTIC PANEL SOLUTION

BETTER ABSORPTION ACROSS THE SPECTRUM

SONIC/CORE's unique patent-pending multi-ply core provides a 100% sound absorptive panel interior, unlike drilled core acoustic panels that only have 30% on their surface area able to functionally absorb sound energy.  Different sound frequencies are absorbed by materials  of different densities and thicknesses.  SONIC/CORE's mutli-ply core is engineered to take advantage of this property of sound waves.  That is why our absorption curve starts out higher and has minimal drop off after reaching its maximum absorption.  This creates a panel that is well suited to a wide variety of acoustic solutions.

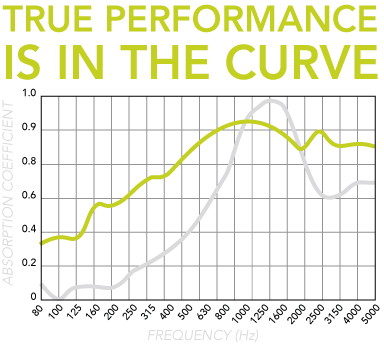

SONIC/CORE VS. LEADING COMPETITOR*

* COMPETITOR NEEDS 2" OF ACOUSTIC INSULATION BEHIND THEIR PANEL       ADDING SIGNIFICANT MATERIAL AND LABOR COSTS

SOUND ABSORPTION

SAVES TIME AND MONEY

SONIC/CORE is ready to hang, just z-clip to the wall just like a traditional veneer panel.  There is no need to put acoustic blanketing behind the panel or use complicated specialized mounting systems.  This saves on materials like extra furring, additional acoustic batting, expensive mounting hardware.  As a result it saves a significant amount of labor.  We've engineered SONIC/CORE to be competitively priced and void of all the hassles and hidden costs that other acoustic panels present.

FSC-CERTIFIED - CLASS A FIRE RESISTANT CORE  -   ANTIMICROBIAL  -  FORMALDEHYDE FREE ADHESIVE  -  LIGHTWEIGHT   -   FINISHED AND READY TO INSTALL

ACOUSTIC SOLUTION THAT CHECKS ALL THE BOXES

THAT ACTUALLY MAKES A DIFFERENCE

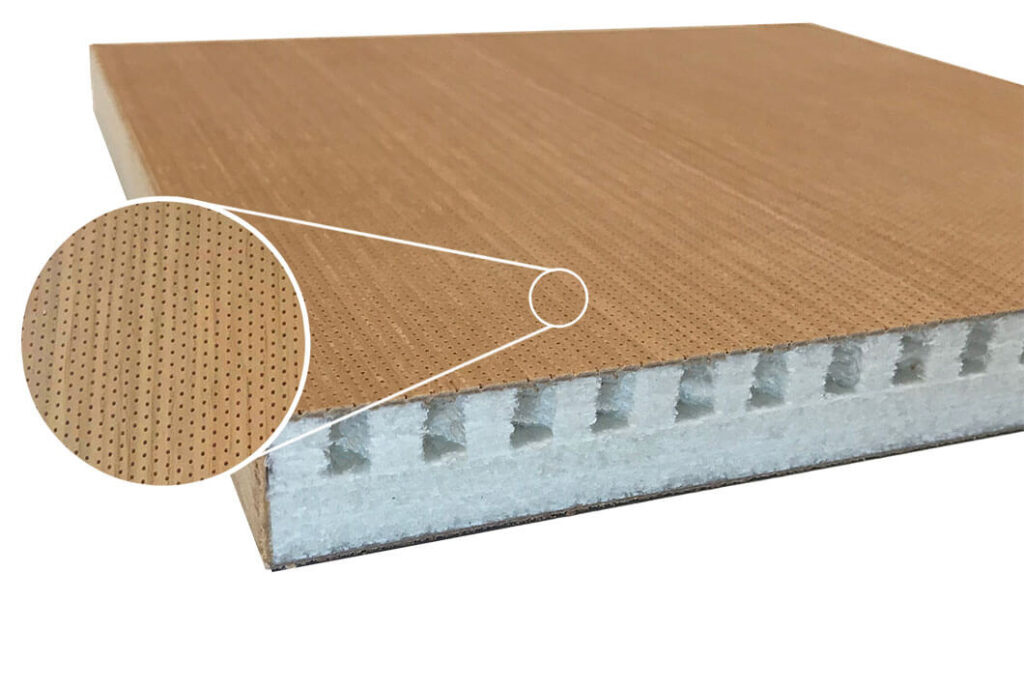

Once sound energy passes through the face it is de-energized through SONIC/CORE's unique multi layer, multi density plies absorbing sound across the frequency spectrum better than its competitor's.  Sound waves have to pass through three different core materials that each dissipate different parts of the frequency spectrum.

Nearly a million micro-perforations through the wood veneer face create portals for sound penetration into the adsorbent core layers below.  These perforations become invisible from only a few feet away, allowing the beauty of the wood to shine.

Thousands of larger perforations in the first core layer create chambers below the perforated face.  This greatly increases the surface area of the material allowing greater sound absorption in the first layer and providing direct access for sound waves into the less dense inner core.

TOTAL MICRO-PERF PERFORMANCE

Unlike the industry standard drilled-core micro-perf panels that have only 30% of their micro-perforations functional, SONIC/CORE is a fully porous core allowing all of the micro-perforations to function at their full capacity.  Sound waves pass through the micro-perforations and enter SONIC/CORE's multi-density acoustic plies absorbing sound across a wide spectrum of frequencies.

70% MORE ABSORPTION

As illustrated on the left, you can see the dramatic difference in available functional micro-perforations in SONIC/CORE compared to a traditional drilled core acoustic panel.

TRADITIONAL DRILLED

MDF CORE

SONIC/CORE 100% POROUS

MULTI-PLY CORE

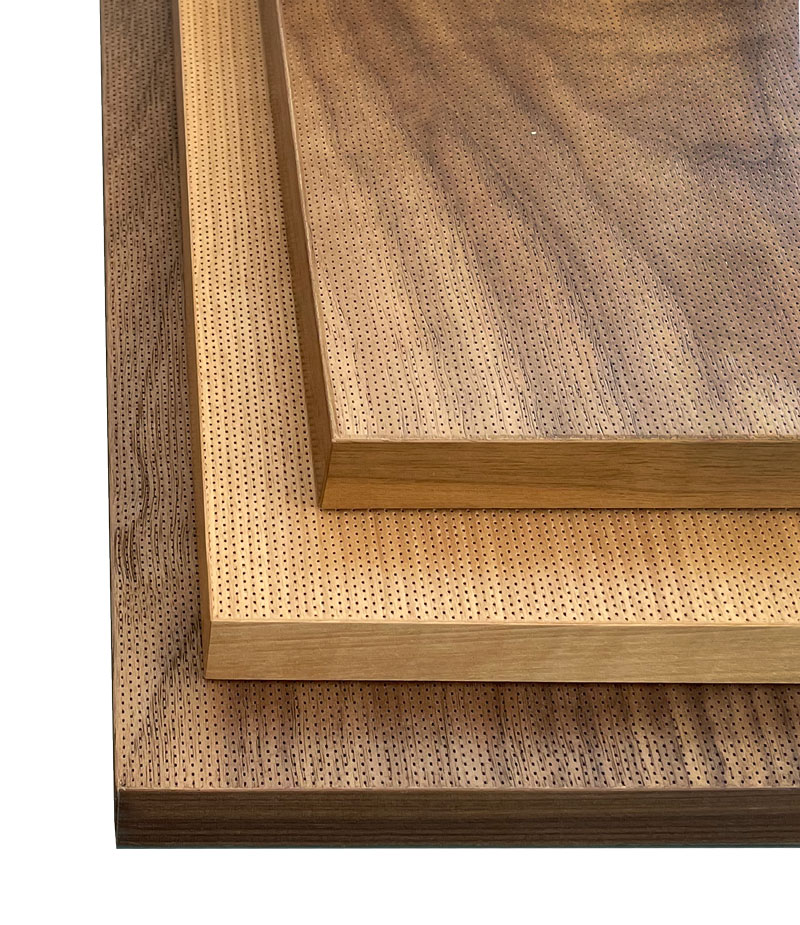

SONIC/CORE's Micro-Perforations disappear at a distance of only a few feet, so all you see is the natural beauty of the real wood panel face: silence and the beauty of natural wood together in one ground breaking acoustic solution.

READY TO INSTALL

Due to SONIC/CORE's industry changing absorptive core, it achieves a high NRC rating, allowing the panels to be installed just as traditional veneer panels would be.  No additional insulation is required.  This saves time and money on your project and results in exceptional performance with no hassle.

QUESTIONS AND MORE INFORMATION

SALES
Mark Papagno
Sales Rep

304.856.3423

SPEC SHEET COMING SOON

Face: Wood Veneer

Perforations: 0.5mm

Thickness: 1" (25.4mm)

Core: Fiberglass / Wood Wool  (Class A fire-rated)

Weight: 1.2 lbs/ft

Mounting: Standard Z-clip with 3/4" screws
